The Ultimate Guide to Millimeter Wave Radar: Applications and Implementation
Millimeter wave radar is transforming industries due to its accuracy and dependability in detecting objects at high frequencies. Millimeter wave radar is transforming industries due to its accuracy and dependability in detecting objects at high frequencies. Millimeter wave radar is transforming industries due to its accuracy and dependability in detecting objects at high frequencies. This technology operates in the millimeter wave spectrum, providing unparalleled accuracy for a variety of applications. This technology operates in the millimeter wave spectrum, providing unparalleled accuracy for a variety of applications. This technology operates in the millimeter wave spectrum, providing unparalleled accuracy for a variety of applications. In this how-to guide, we'll look at how to integrate and optimize millimeter wave radar systems, using innovative solutions such as our cutting-edge traffic monitoring sensor designed for modern transportation. In this how-to guide, we'll look at how to integrate and optimize millimeter wave radar systems, using innovative solutions such as our cutting-edge traffic monitoring sensor designed for modern transportation. In this how-to guide, we'll look at how to integrate and optimize millimeter wave radar systems, using innovative solutions such as our cutting-edge traffic monitoring sensor designed for understanding the basics of millimeter wave radar. or modern transportation.

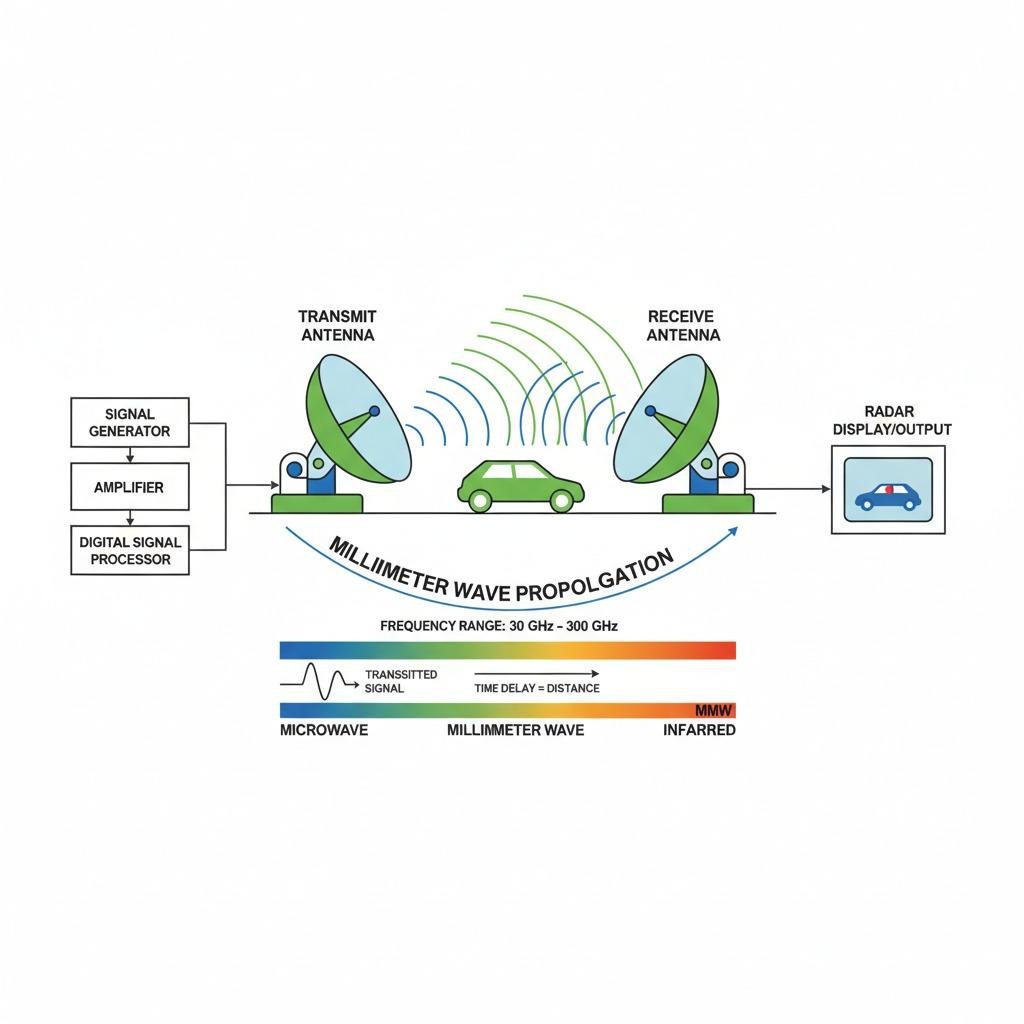

To get started with millimeter wave radar, first understand its fundamental principles. This radar type operates at frequencies ranging from 30 GHz to 300 GHz, allowing for compact designs and high-resolution imaging. Begin by selecting the appropriate frequency band for your needs—77 GHz is popular for automotive applications due to its balance of range and resolution. Our traffic monitoring sensor exemplifies this by combining high-performance electronic components with advanced circuit design to collect real-time data on vehicle speed and density.
Next, assess environmental factors. Millimeter wave radar excels in adverse weather, penetrating fog and rain better than optical sensors. Install the system in a location with minimal interference, ensuring the radar antenna faces the target area. For setup, connect the sensor using its multi-colored wiring system for seamless integration with control systems. Test initial calibration by emitting test signals and verifying echo returns, adjusting power levels to avoid false positives.
Integrating ADAS MMW Radar for Automotive Safety
For Advanced Driver Assistance Systems (ADAS), ADAS MMW Radar is essential. Start by choosing a module compatible with your vehicle's ECU. Our sensor's optimized circuitry processes data in real time, ideal for collision avoidance. Mount the radar on the bumper, aligning it parallel to the ground for optimal beam pattern.
Configure the software for object classification—distinguish between vehicles, pedestrians, and obstacles. Use radar antenna design principles to enhance signal focus; a phased array antenna can improve directionality. Calibrate using known targets at varying distances, then integrate with the CAN bus for data sharing. Regular reliability testing of millimeter wave radar ensures longevity, with our device's solid casing withstanding vibrations and temperatures from -40°C to 85°C.
In practice, simulate traffic scenarios to fine-tune sensitivity. This setup not only boosts safety but also complies with standards like ISO 26262.
Implementing Industrial Sensing with MMW Radar
Industrial sensing with MMW radar suits factories and warehouses for non-contact monitoring. Opt for a compact MMW radar module to save space. Position it above conveyor belts to detect product positions or anomalies. Begin with a site survey to map interference sources, then secure the module using industrial mounts.
Process data via Millimeter Wave Radar Data Analysis tools—employ algorithms like FFT for velocity estimation. For low-cost implementations, our Low-Cost MMW Radar Solution offers affordability without sacrificing performance, featuring easy installation for quick deployment.
Monitor metrics like detection accuracy, iterating on antenna configurations for better coverage. In industrial settings, this radar reduces downtime by predicting maintenance needs through vibration sensing.
Deploying MMW Radar for Smart Cities and Robotics
In urban environments, MMW radar for smart city applications manages traffic flow. Install sensors at intersections, linking them to central systems. Our traffic monitoring sensor revolutionizes this by analyzing density on highways, reducing congestion, and enhancing safety. Start with network setup, using Ethernet or wireless for data transmission.
For robotics, millimeter wave radar for robotics enables navigation in dynamic spaces. Mount a compact module on the robot's chassis, calibrating for 360-degree coverage if using multiple units. Program pathfinding algorithms to interpret radar data, avoiding obstacles in real-time.
Conduct field tests in varied conditions, refining through data logs. Reliability testing of millimeter wave radar here involves stress simulations to ensure 99.9% uptime.
Best Practices for Data Analysis and Optimization
Master millimeter wave radar data analysis by collecting raw signals and applying filters to remove noise. Use Python libraries like NumPy for processing and visualizing heatmaps of detection zones. Optimize by tweaking pulse width for range versus resolution trade-offs.
For all applications, prioritize security—encrypt data transmissions. Regular maintenance, including lens cleaning for the radar front end, sustains performance. By following these steps, you'll harness millimeter wave radar's full potential, from ADAS to smart infrastructure, driving efficiency and innovation in your projects.
